穩定土拌和機系列
WB系列穩定土拌和機

名稱:WB系列穩定土拌和機

WBY210/WBZ23型穩定土拌和機

詳細信息

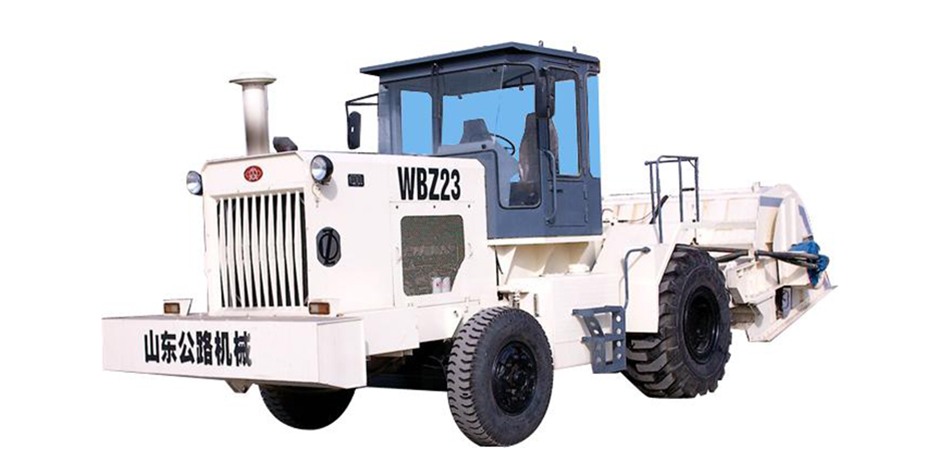

WBZ23.WBY210型穩定土拌和機
WBZ23.WBY210 STABILIZED SOIL MIXER
該機適用于公路、城鄉道路、機場、碼頭、廣場等工程的基層、底基層穩定材料的就地拌和作業。
WBZ23.WBY210 Stabilized Soil Mixer is used for highway, road ,airport ,quay  and square for mix-stiring on the worksite firm-materials of base-layer and surface-layer.

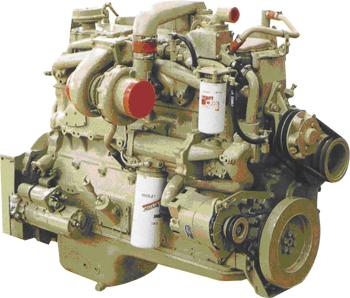

發動機


●采用康明斯N系列渦輪增壓發動機
●結構緊湊、噪聲小、易于維修、廢氣排放低等優點
●整機功率儲備大、可靠性高
The Engine
●Adopt Cummins N series turbo engine.
●Compact structure , small yawp, easy service, and low exhaust emission.
●A high hive power as well as high reliability.
液壓系統
●行走采用PV23變量泵與MF23定量馬達組成的閉式系統
●工作裝置采用A4VG250變量泵與GM5A1600定量馬達組成的閉式系統.
●傳動效率高、噪聲低,可實現功率自動分配
●結構簡單、維修方便
The hydraulic system
●Driving is a close system of  PV23 variable pump and MF23 ration motor .
●Working is a close system of  A4VG250 variable pump and GM5A1600 ration.
●High driving efficiency, small yawp,realize power self-distribute.
●Simpleness structure,convenience service.

The hydraulic unit

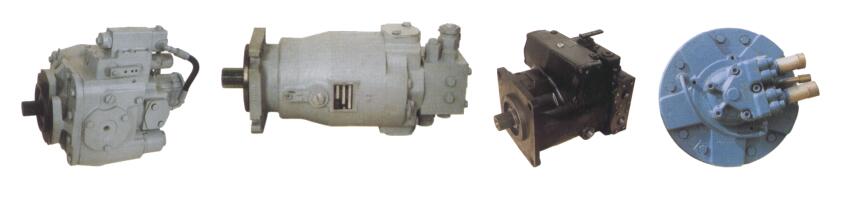

液壓件
●液壓泵、液壓馬達采用國際知名公司進口元件
●效率高、性能穩定、使用壽命長
The hydraulic unit
●Adopt import hydraulic pump, hydraulic motor .
●High efficiency, stabilization capability and a long life-span.

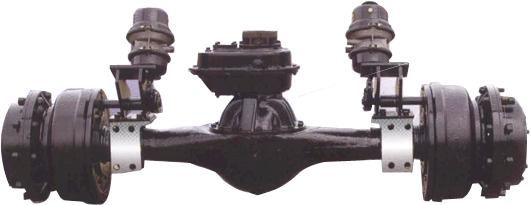

變速箱與驅動橋


●采用兩速變速箱,低速用于作業和爬坡,高速用于行駛
●驅動橋采用SOMA剛性驅動橋
●機構緊湊、質量可靠
The gear-box and the dirve bridge
●Adopt double-speed  gear-box, lowspeed is used for working and climbing,highspeed is used for driving
●The dirve bridge adopt SOMA rigidity dirve bridge
●Compact structure,credibility quality

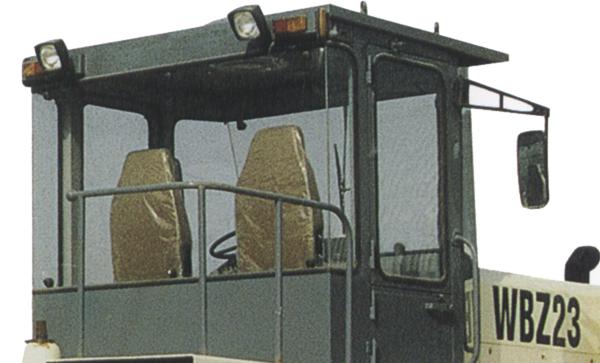

駕駛室


●全封閉式駕駛室
●寬敞明亮、視野開闊、密閉性好,司機耳邊噪聲低
●可另配置空調
The cab
●The whole closed -cab
●Open and brightness,widen view , well obturation and low yawp
●Additional collocate air-condition

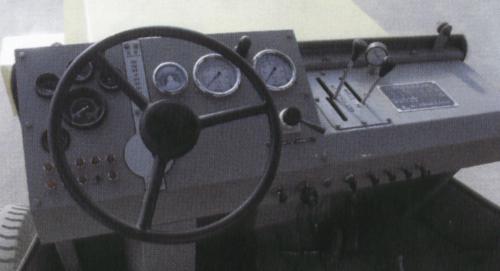

操作系統


●人性化設計,做大限度降低駕駛疲勞
●操縱輕便、靈活、安全可靠
Operating system
●Humannss design,reduce tiredness
●Handiness operatinting,agility and safe

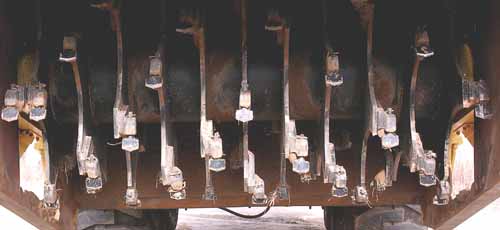

工作裝置


●轉子采用逆向旋轉,拌和質量高
●拌刀采用錘式組合拌刀,硬度高、壽命長,更換方便
●更換銑刨裝置后可對舊路面、路基進行銑刨作業
The working system
●Rotor adopt a converse  circumgyrate,high quality mix
●Max-falchion adopt hammer-type combination ,high rididity, a long life-span. and convenience replacing.

●After replacing mill and dig setting, may work for old road surface and roadbed

   術  數TECHNICAL SPECIFICATIONS

型  號  Model

WBZ23

整機質量 kg Total Weight

15200

拌和寬度 mm Mixing width

2300

拌和深度 mm Mixing depth

400

行走速度 km/hRunning speed

023

工作速度(km/h Working speed

01.8

 轉  子

Rotor

直徑 mmDiameter

1306



轉速 r/minRotor speed

160



旋向Direction of rotate



逆向converse



爬坡能力 %Grade ability

30

  機 型號 Diesel engine model

功率     kWPower

NTA855-C400

298

外形尺寸 × × mmTotal size(L×B×H)

8800×3360×3420
